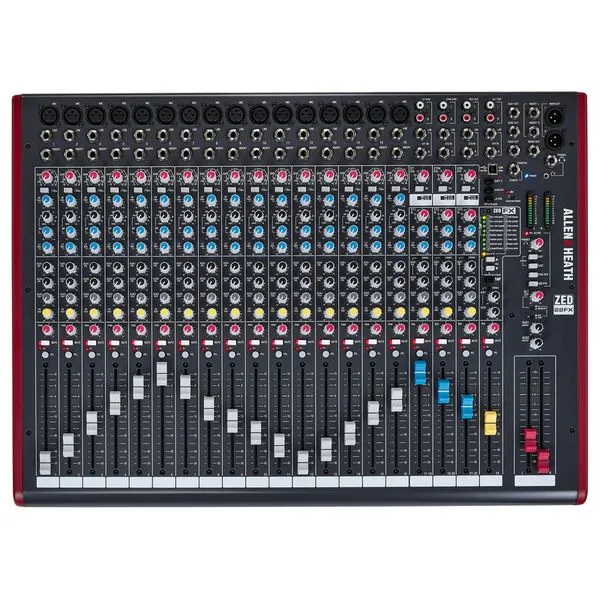

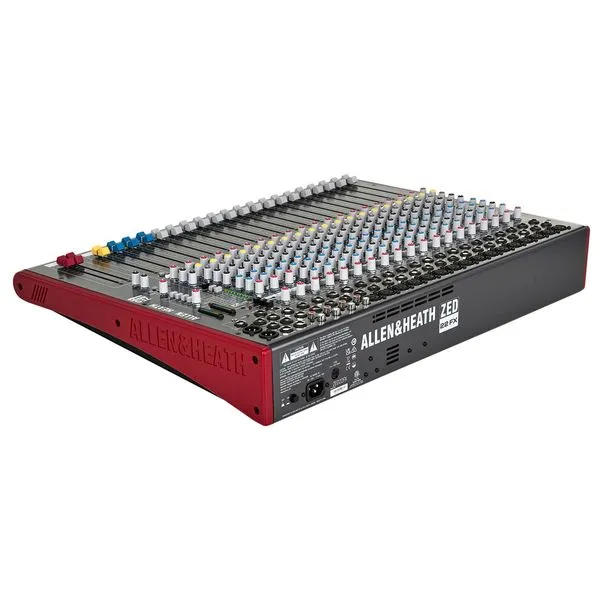

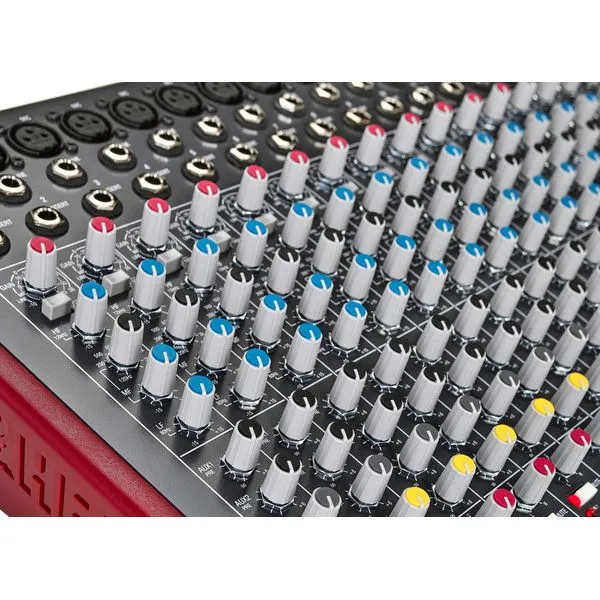

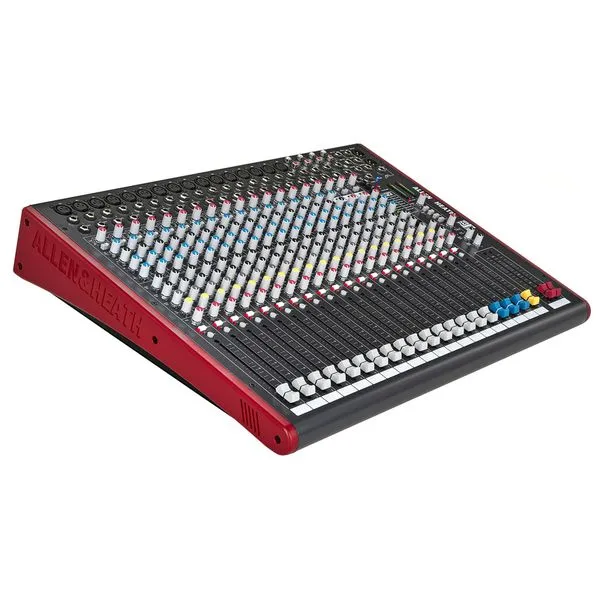

Allen  Heath ZED-22FX 22-Channel Mixer with USB Interface and Onboard EFX Product description

The Allen Heath ZED-22FX, 22-Channel Mixer with USB Interface (16 mono + 3 stereo) mixer from Allen & Heath has its own unique 16 internal FX, a sturdy design for gig usage, and plenty of I/O to be a great addition for your studio setup. It also comes with DuoPre preamps which use a two-

Stage design, USB audio flexibility,

and comes with Cakewalk’s SONAR LE. From the Allen & Heath’s ZED series, the ZED-22 FX has been developed around a new FX chipset.

ZED FX mixing consoles

Allen & Heath’s DSP engineers crafted and refined beautiful reverb algorithms and the 16 effects they created are unique to the ZED FX mixing consoles. 16 essential time-delay effects add to the already bulging feature set.

ideal for small groups

The mixer is ideal for small groups who don’t want to carry around an effects unit with their gear but who still want great quality FX at their gigs and on their recordings.

In addition, you get smooth-sounding Duo Pre mic preamps, 100mm faders, and the Music EQ section which are shared with the whole ZED range. Internal FX 16 separate effects have been crafted into the ZED-FX range.

These allen Heath ZED-22FX include

Delay and Reverb, Ping-Pong delay, a selection of reverbs with different room/hall/arena properties, a flanger, and a chorus. All have been designed to sweeten your sound with minimal effort. Each of the effects has a parameter that can be altered:

pre-delay can be adjusted, room sizes tweaked, and flanger speed dialed-in. 5 of the effects can have their tempo tapped in, and the output auditioned by the FX PFL.

Allen Heath ZED-22FX Inputs One

of the great things about the ZED-22FX USB mixer is the number and variety of things you can plugin. In addition to the 16 mono channels, there are 3 dual stereo channels, each with a main stereo input on the jack sockets, and with the ability to take additional stereo inputs from

phono sockets, or from the USB audio input. 16 mic/line channels are provided on the ZED-22FX-plenty for mics or DI boxes for a small band, duo, or solo performer, as well as 4 stereo line inputs-dual inputs, both with gain and 2-band EQ. D

• Top Features
  .Channels: 16 mono (mic/line) + 3 dual stereo.
  .Preamps: 16 DuoPre (69dB gain, low noise).
  .FX: 16 built-in digital effects with tap-tempo.
  .EQ: 3-band with swept mid (Mono); 2-band (Stereo).
  .USB: 2-way stereo interface for recording/playback.
  .Faders: Professional 100mm long-throw ALPS.
  Build: All-metal chassis; individual vertical channel boards.
  Specifications
• Outputs: XLR Main, 1/4" Mono, 4 Aux sends.
• Filter: 100Hz High Pass (Mono channels).
• Power: Global +48V Phantom.
• Audio: 16-bit, 44.1/48kHz USB; 10Hz–30kHz response.
• Dimensions: 645 x 465 x 98 mm.
• Weight: 10.5 kg.
